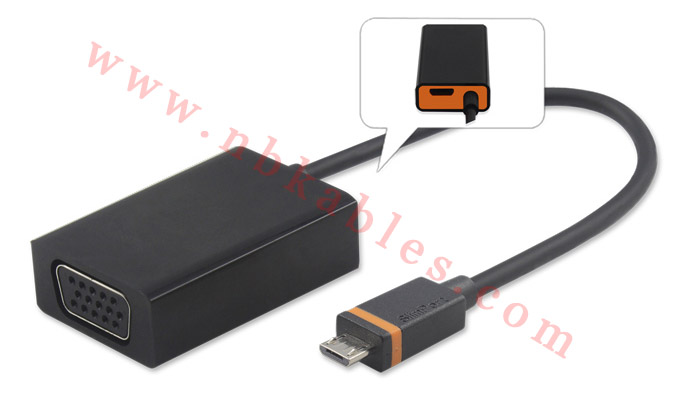

MyDP (SlimPort) to VGA F + Micro USB female Adapter Cable
Input Interface
- MyDP 1.0 input
- Configurable 1‐lane input?supports: 5.4Gbps, 2.7Gbps or 1.62Gbps data rates
- Spread Spectrum Clocking support single‐wire AUXP (C‐WIRE) sideband communication
VGA transmitter output
- Supports resolutions up to WUXGA (
1920x1080p@60Hz)
- VGA output meets the VESA VSIS v1r2 clock jitter specification
- VGA output pixel rate up to 165 MHz
- Low power standby mode
Application:
Sending 3D HD audio-video contents from any Mobility DisplayPort (MyDP) enabled transmitter in ultrathin notebooks, tablets, smartphones, camcorders and digital camera with Android system to VGA output so that the device can connect to any high‐definition TV, monitor or projector.
Compatible devices:
LG G2, LG Optimus G Pro,etc.
