UAC1006

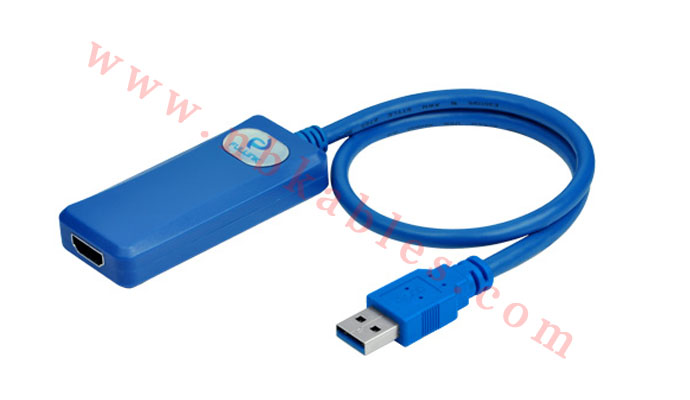

USB 3.0 to HDMI F Adapter Cable

Compliant with USB 3.0 specification.
Backward compatible with USB 2.0 specification.
Support USB 3.0 upstream port in: SS mode (5 Gbps) HS mode (480 Mbps) FS mode (12 Mbps) .
Compliant with HDMI ver. 1.2 specification and backward compatible to DVI Ver. 1.0 specification.
24-bit 2-channel I2S digital audio data via HDMI.
One I2S interface support 2-channel audio.
Audio sample rate range: 32 kHz ~ 48 kHz.
Sample size range: 16 bits ~ 24 bits.
Support pixel rate ranging from 25 MHz to 165 MHz.
DTV resolution: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p.
Monitor resolution: VGA, SVGA, XGA, SXGA, and UXGA.
Integrate analog RGB digital-to-analog converter.
Support pixel rate from 25 MHz to 200 MHz.

Blue and black are available.
