M3001

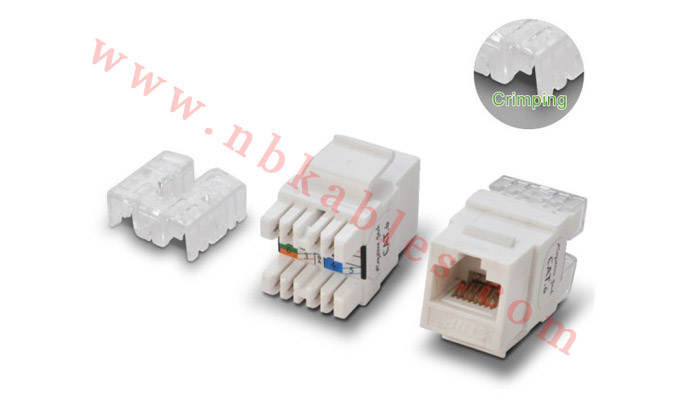

Cat 6 Keystone Jack for RJ45

Meet ISO/IEC 11801,TIA/EIA568C

Own patent products.

Used for Wall Plated.

Fit for wires AWG22-26.

IDC omsertopm life 200 cycles.

Plug insertion life 750 cycles Min.

Dielectric strength: When applied AC 750V or DC1000V

1 minute between adjacent terminal NO change.

Material: Using PC/ABS for cover,

PC for module,phosphor bronze for IDC wirepost.
